Experience precision with the Huepar S02CG, a 2x360 self-leveling cross line laser featuring Bluetooth connectivity. Its robust metal laser window ensures durability and accuracy in various environments. Ideal for professionals requiring reliable leveling for construction and home projects.

3 YEAR WARRANTY
2 X 360° LINE LASERS WITH BLUETOOTH TECH: The laser level S02CG projects two 360° laser lines. Bluetooth connectivity enables to control the setup of the laser from across the room with Huepar App on smart phone and remote control. The App and remote control can switch ON/OFF the laser lines and pulse mode, select the laser planes. Huepar App also provides out-of-level alarm. The laser tool can connect two Bluetooth devices simultaneously.
TRIPLE POWER METHODS & TYPE-C CHARGING PORT: Huepar S02CG laser tool adopted 7.4V / 2600mAh Li-ion battery (can be purchased easily at local market) for extended run-time, or with 4 AA alkaline batteries. Besides, this laser level can be used at job site by plugged in when take out the battery. With Type-C charging port, the 360 cross line laser level can also be charged by laptop, power bank, car charger, etc.
BRIGHT GREEN BEAM & PULSE MODE: The laser tool adopts bright Osram’s green laser, which is up to 4X brighter than standard red beams of an accuracy ±1/9 Inch at 33 Feet. Outdoor pulse mode extends the working range up to 200Ft with Huepar Laser Receiver LR-6RG/LR-5RG in bright-light or outdoor conditions. With smart pendulum, the laser tool self levels and indicates out-of-level condition while pendulum unlocked. Once pendulum locked, it switches to manual mode to lock lines for use at any angle.
DURABLE & MORE INSTALLATION METHODS: The line laser level features metal laser window, which delivers stronger protection for Anti-Drop. The laser windows can be removed and replaced with a screwdriver. The laser level comes with 1/4"-20& 5/8"-11 thread help mount it to different tripod threads. Equipped with a magnetic bracket, two strong magnets allow for attachment to metal track and steel. The metal wall panel for more fixing methods when working.
PACKAGE CONTENTS & WARRANTY: The laser tool Package includes laser level, Li-ion battery magnetic bracket, Type-C power cord, power adapter, user manual, laser target plate, metal panel, AA battery holder, 4*AA alkaline batteries. 12 months limited warranty up to 24 months if become a royal member through product registration.

Huepar S02CG 2x360 Self-Leveling Cross Line Laser with Bluetooth Connectivity and Metal Laser Window6

Specifications for Huepar 2 x 360° Green Laser Level S02CG:

Projection: 2 x 360° Green Laser Lines
Laser Class: Class 2 (IEC/EN60825-1/2014), <1mW power output
Laser Wavelength: 505-520nm
Horizontal / Vertical Accuracy: ±1/9 Inch at 33 Feet
Leveling / Compensation Range: 3.5°±1°
Leveling Time: ＜3s
Working Distance: 65 feet (300 LUX), 200 feet with Huepar Laser Detector LR-5RG / LR-6RG
Power Source: 7.4V / 2600mAh Li-ion Battery
Reference Operating Time: About 8 hours with all laser beams ON
Mount Size: 1/4"-20& 5/8"-11
IP Rating: IP54 dust-proof, waterproof and shockproof, reliable and tough
Operation Temperature Range: Between -10℃ and +50℃

Huepar S02CG 2x360 Self-Leveling Cross Line Laser with Bluetooth Connectivity and Metal Laser Window2

2 x 360° Multiple Line Switching Functions:

This laser level allows users to line up level, align, square and plumb by generating two 360° laser planes - One 360° horizontal and one 360° vertical planes enable users to cover the floor, wall, ceiling all around the room.

The horizontal line and vertical lines can be selected individually by pressing the independent H and V button on the keypad.
The horizontal line, vertical line and combined laser lines can be selected individually depends on different job site applications.

Huepar S02CG 2x360 Self-Leveling Cross Line Laser with Bluetooth Connectivity and Metal Laser Window0

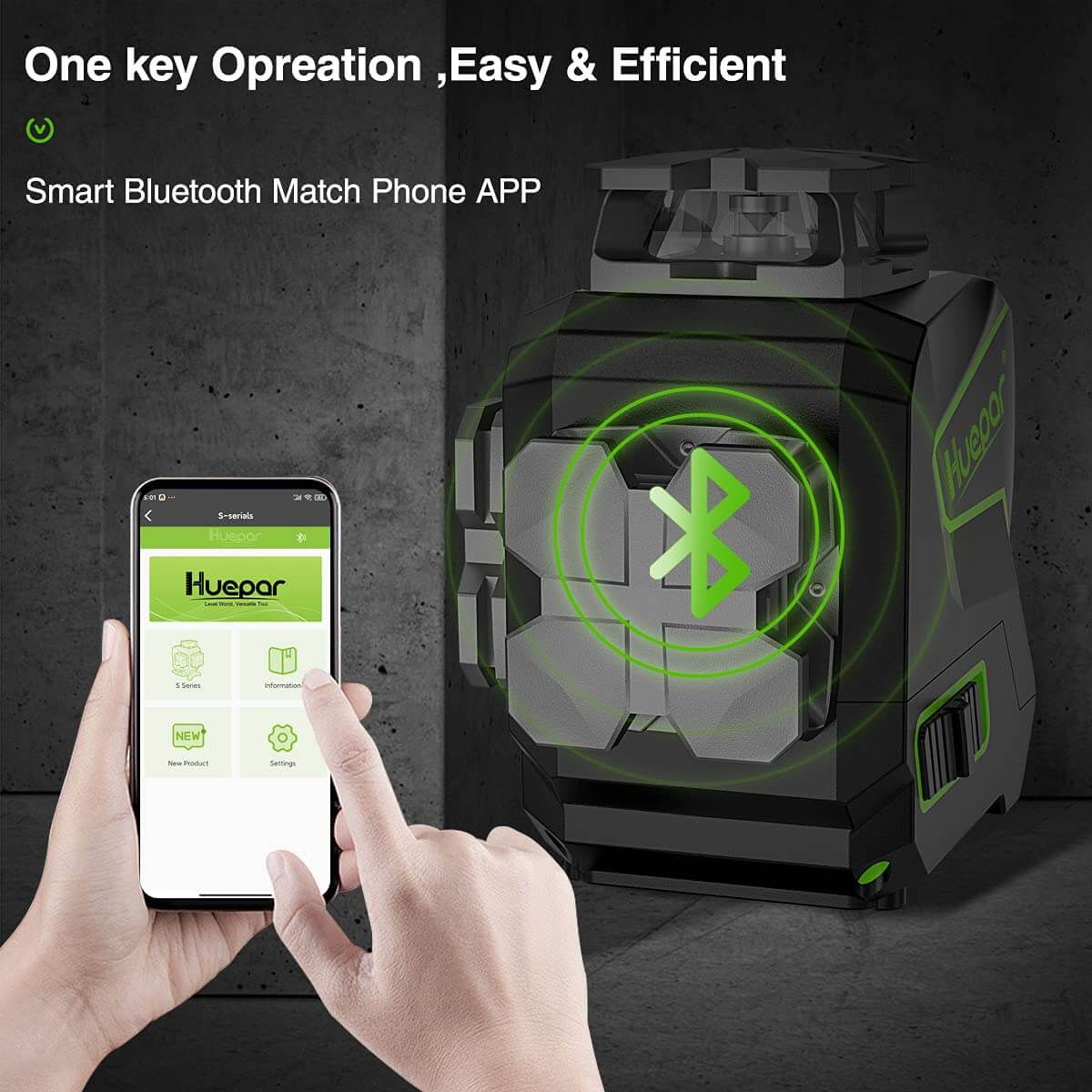

Bluetooth Technology

With Bluetooth Technology, Huepar APP enables to select two 360° laser lines individually at a distance up to 98Ft.
The laser line(s) can be temporarily turned OFF by the Huepar APP when need to leave for a while.
The laser tool can connect two Bluetooth devices simultaneously. It can connect two Bluetooth remote controls, or two smart phones(whether on Android or iOS), or one Bluetooth remote control and one smart phone at the same time.
In manual mode, when all laser lines are switched off, the laser tool will shut OFF automatically after about 5 minutes of inactivity.

Huepar S02CG 2x360 Self-Leveling Cross Line Laser with Bluetooth Connectivity and Metal Laser Window5

Smart Pendulum

Self-leveling Mode:

When the laser tool is switched to the unlocked position, the self-leveling mode is enabled.
The line laser will beep when out of self-leveling range ±3.5°.

Manual / Tilt Mode:

When the pendulum locked, the laser tool can be placed for alignment at any angle.
The laser beam will blink every 3-5 seconds to remind you that it's not self-leveling now

Huepar S02CG 2x360 Self-Leveling Cross Line Laser with Bluetooth Connectivity and Metal Laser Window1

Easy Operation

Green Laser Target Plate: Increases the visibility of the laser beam.
360° Strong magnetic bracket: Allows being adsorbed onto metal track and steel. the laser tool can be rotated to the required angle.Two strong magnets allow for attachment to metal track and steel .It can meet different angles required in many jobsite.
The attached metal wall panel provides more fixing methods when working.

Huepar S02CG 2x360 Self-Leveling Cross Line Laser with Bluetooth Connectivity and Metal Laser Window4

Triple Power Methods

This laser tool utilizes the included large capacity Li-ion battery which is compatible with Samsung SB-L110 battery.
Huepar 360 laser level also comes with a holder for installing 4 AA batteries to use the tool.
The 2X360 laser level can be used at the work site by plugged in directly when taking out the battery. when taking out the battery.
With Type-C charging port, the laser level can also be charged by laptop, power bank, car charger, etc.

Huepar S02CG 2x360 Self-Leveling Cross Line Laser with Bluetooth Connectivity and Metal Laser Window3
